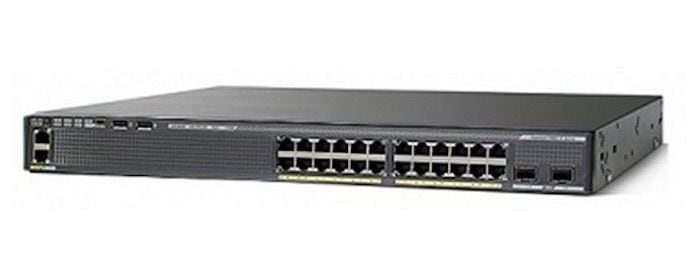

Cisco Catalyst 2960XR Series
WS-C2960XR-24PD-I
About
Cisco catalyst 2960XR-24PD-I IP Lite Base layer 2 - 3 stackable switch is comprised of 24 x 10/100/1000 Ethernet POE+ ports and two SFP+ uplink interfaces. IP Lite Image enables basic access layer 3 routing features, such as RIPV1, V2, OSPF stub, EIGRP stub, HSRP, VRRP, PIM, etc.
Product Availability
| New | ||
|---|---|---|
| Refurbished | ||
| Pre-Refurbished |
Product Specs
| Product Code | WS-C2960XR-24PD-I |
|---|---|
| Enclosure Type | Rack-mountable - 1U |
| Feature Set | IP Lite |
| Uplink Interfaces | 2 x 10G SFP+ |
| Ports | 24 x 10/100/1000 POE+ |
| Available PoE Power | 370W |
| Forwarding Bandwidth | 108Gbps |
| Maximum stacking number | 8 |
| Stack bandwidth | 80G |
| Switching Bandwidth | 216Gbps |
| RAM | 512 MB |
| Flash Memory | 128 MB |
| Dimensions (H x D x W) | 4.45 x 40.8 x 44.5 cm |
| Package Weight | 16.15 Kg |
Configuration
![[object Object] image](/static/products/C2960X-STACK.jpg) | C2960X-STACK | Catalyst 2960-X FlexStack Plus Stacking Module |
|---|---|---|
![[object Object] image](/static/accessories/CAB-STK-E-0.5M.jpg) | CAB-STK-E-0.5M | Cisco FlexStack Stacking Cables |
![[object Object] image](/static/accessories/GLC-LH-SMD.jpg) | GLC-LH-SMD | Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
![[object Object] image](/static/accessories/GLC-SX-MMD.jpg) | GLC-SX-MMD | 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
![[object Object] image](/static/accessories/CAB-CONSOLE-RJ45.jpg) | CAB-CONSOLE-RJ45 | Console Cable 6ft with RJ45 and DB9F |
![[object Object] image](/static/accessories/CAB-CONSOLE-USB.jpg) | CAB-CONSOLE-USB | Console Cable 6 ft with USB Type A and mini-B |
